EKIPAZH AluLight C50

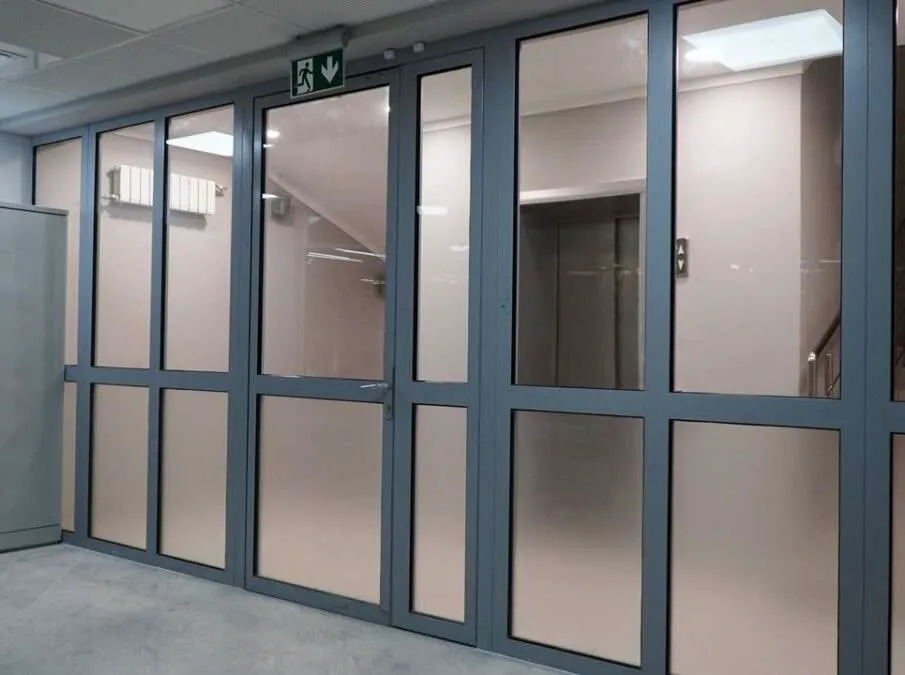

EKIPAZH AluLight C50 – cold aluminum window and door system without thermal break, designed for the manufacture of internal partitions and internal doors of offices, unheated premises where it is not necessary to cut off the warm zone from the cold.
Compatibility with Winkhaus ActivPilot fittings (for windows), possibility of manufacturing swing doors (possibility of opening in both directions)
Advantages
- A modern aluminum system without a thermal break, which is designed for the manufacture of windows, doors and partitions in rooms where thermal insulation is not required.
- It is well suited for balconies, terraces, offices, shops or entrance groups.
- The main advantage of the system is practicality and durability, the structures have a strong aluminum profile with a wall thickness of 1.6 mm.
- The system supports various filling options for single glass or double-glazed windows with a thickness of 4 to 30 mm.
- AluLight C50 looks modern and neat, fits well into both commercial and residential interiors.
- Compatibility with the AluLight CS50 sliding system. This allows you to combine different types of structures in one object (for example, blind parts, doors, swing doors and sliding elements) in a single style.

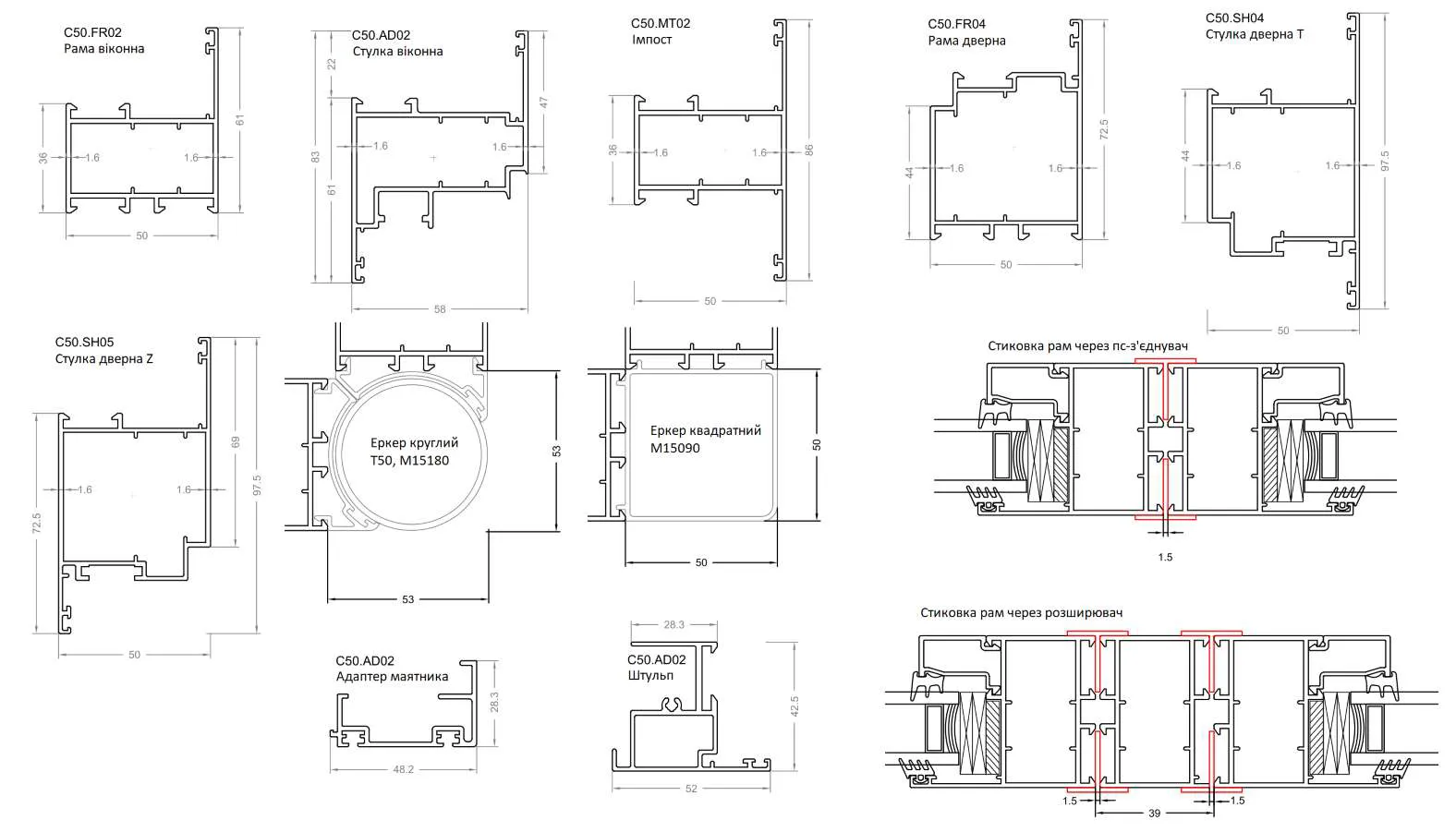

Features:
- Frame depth, mm: 50 50
- Filling width, mm: 30
- Sealing contours, pcs.: 2
- System type: cold
- Max. window sash dimensions, mm (width*height): 1000 * 2200
- Max. door leaf dimensions, mm (width*height): 1000 * 2400
- The thickness of the outer walls of the profile: 1.6 mm
- Possibility of coloring: yes
DESIGN SOLUTIONS
RAL 1000
RAL 1007
RAL 1026
RAL 2005
RAL 3000
RAL 3005
RAL 3022
RAL 4001
RAL 4006
RAL 5000
RAL 5005
RAL 5013
RAL 6000
RAL 6005
RAL 6027
RAL 7000
RAL 7011
RAL 7021
RAL 7035
RAL 8000
RAL 8001
RAL 8014
RAL 9002
RAL 9005
RAL 9018
RAL 9023
